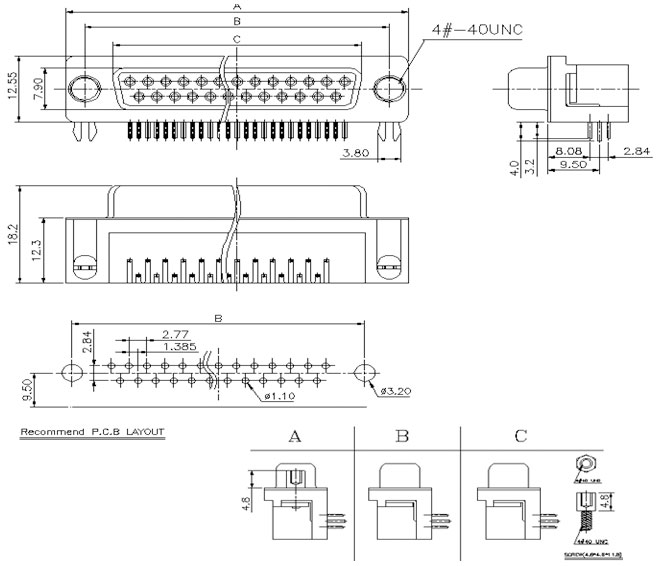

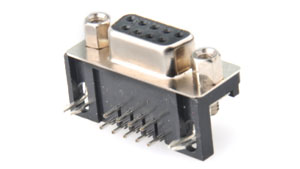

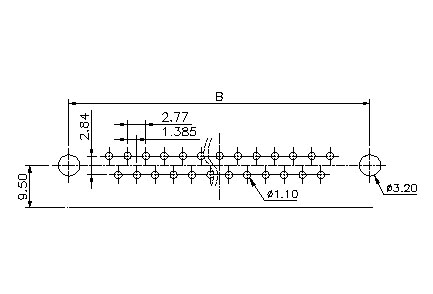

D-SUB Dip Type



Pitch: D-SUB Dip Type

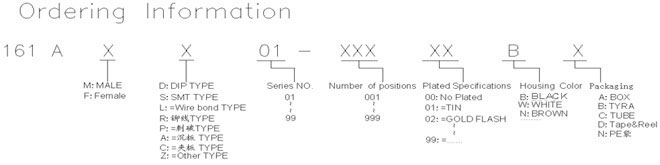

No.：161AFD01-XXXXXX







Specifications：

Current Rating：3.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：500V AC
Contact Resistance：30mΩ Max
Operating Temperature：-40℃ to +85℃



Materials:

Contact Material：Copper Alloy
Housing Material：Polyester,UL 94V-0；PBT, Color: Black
All materials must meet HoRS tequirement for environmention protection
