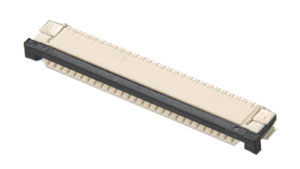

0.5mm(0.020”) FPC SMT Type

Pitch: 0.5mm(0.020”) FPC SMT Type

No.：165BFS01-XXXXXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：0.40Ampere
Insulation Resistance：500MΩ Min
Dielectric Withstanding：200V AC
Contact Resistance：20mΩ Max
Operating Temperature：-25℃ to +85℃

Materials:

Contact Material：Copper Alloy
Housing Material：Thermoplastic,UL 94V-0； PA6T LCP PPS
All materials must meet HoRS tequirement for environmention protection

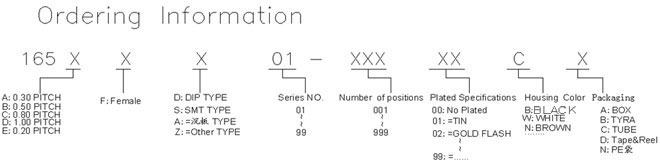

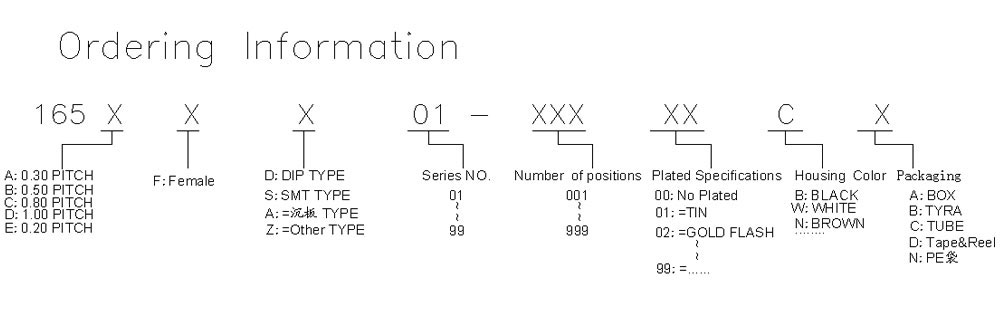

Ordering Information

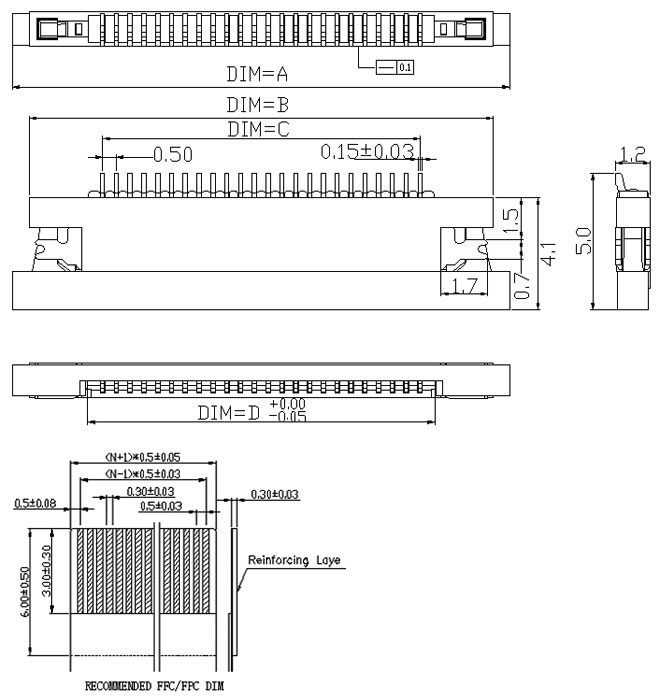

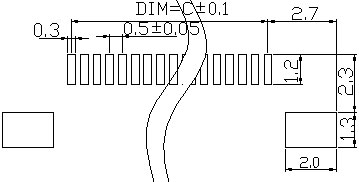

Dimension Information

PIN	DIM-A	DIM-B	DIM-C	DIM-D	PIN	DIM-A	DIM-B	DIM-C	DIM-D
4P	8.0	6.8	1.50	2.6	33P	22.5	21.3	16.00	17.1
5P	8.5	7.3	2.00	3.1	34P	23.0	21.8	16.50	17.6
6P	9.0	7.8	2.50	3.6	35P	23.5	22.3	17.00	18.1
7P	9.5	8.3	3.00	4.1	36P	24.0	22.8	17.50	18.6
8P	10.0	8.8	3.50	4.6	37P	24.5	23.3	18.00	19.1
9P	10.5	9.3	4.00	5.1	38P	25.0	23.8	18.50	19.6
10P	11.0	9.8	4.50	5.6	39P	25.5	24.3	19.00	20.1
11P	11.5	10.3	5.00	6.1	40P	26.0	24.8	19.50	20.6
12P	12.0	10.8	5.50	6.6	41P	26.5	25.3	20.00	21.1
13P	12.5	11.3	6.00	7.1	42P	27.0	25.8	20.50	21.6
14P	13.0	11.8	6.50	7.6	43P	27.5	26.3	21.00	22.1
15P	13.5	12.3	7.00	8.1	44P	28.0	26.8	21.50	22.6
16P	14.0	12.8	7.50	8.6	45P	28.5	27.3	22.00	23.1
17P	14.5	13.3	8.00	9.1	46P	29.0	27.8	22.50	23.6
18P	15.0	13.8	8.50	9.6	47P	29.5	28.3	23.00	24.1
19P	15.5	14.3	9.00	10.1	48P	30.0	28.8	23.50	24.6
20P	16.0	14.8	9.50	10.6	49P	30.5	29.3	24.00	25.1
21P	16.5	15.3	10.00	11.1	50P	31.0	29.8	24.50	25.6
22P	17.0	15.8	10.50	11.6	51P	31.5	30.3	25.00	26.1
23P	17.5	16.3	11.00	12.1	52P	32.0	30.8	25.50	26.6
24P	18.0	16.8	11.50	12.6	53P	32.5	31.3	26.00	27.1
25P	18.5	17.3	12.00	13.1	54P	33.0	31.8	26.50	27.6
26P	19.0	17.8	12.50	13.6	55P	33.5	32.3	27.00	28.1
27P	19.5	18.3	13.00	14.1	56P	34.0	32.8	27.50	28.6
28P	20.0	18.8	13.50	14.6	57P	34.5	33.3	28.00	29.1
29P	20.5	19.3	14.00	15.1	58P	35.0	33.8	28.50	29.6
30P	21.0	19.8	14.50	15.6	59P	35.5	34.3	29.00	30.1
31P	21.5	20.3	15.00	16.1	60P	36.0	34.8	29.50	30.6
32P	22.0	20.8	15.50	16.6

Related Literature

Detailed product specifications chart (PDF) Download
Description:

Products 3D Models (PDF) Download
Description:

Product Specification (PDF) Download
Description:

Product Packaging (PDF) Download
Description:

Product Test Report (PDF) Download
Description:
