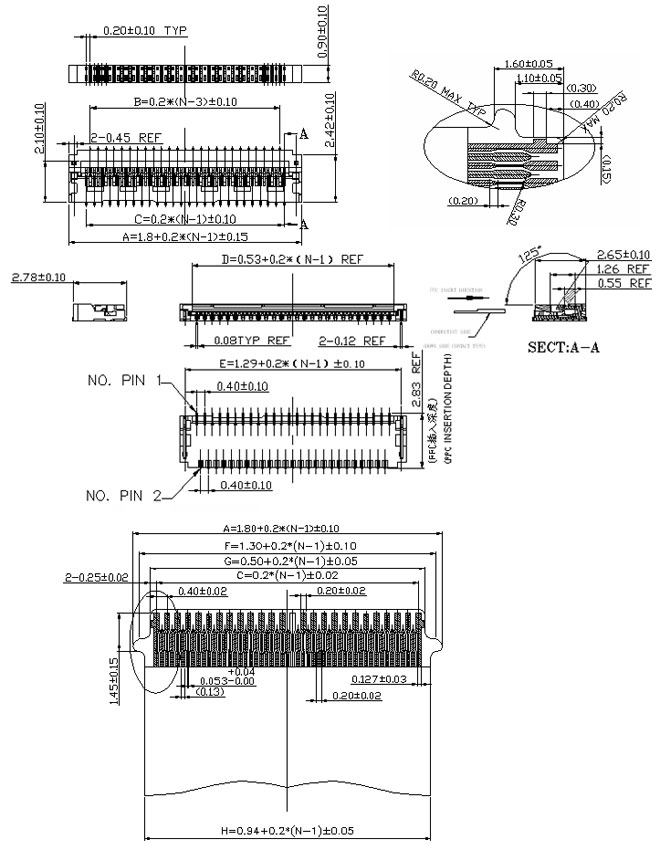

0.20mm(0.008”) Female FPC SMT Type H=0.90mm



Pitch: 0.20mm(0.008”) Female  FPC SMT Type H=0.90mm

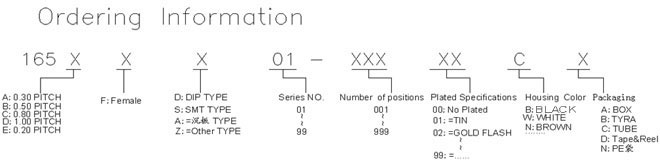

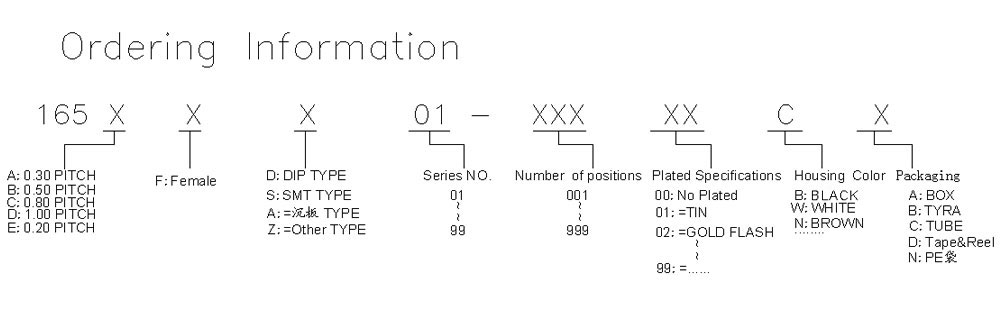

No.：165EFS01-XXXXXX







Specifications：

Current Rating：0.25Ampere DC
Insulation Resistance：500MΩ Min
Dielectric Withstanding：120V AC
Contact Resistance：100mΩ Max
Operating Temperature：-55℃ to +85℃



Materials:

Contact Material：Copper Alloy
Housing Material：Polyester,UL 94V-0； PA  LCP
All materials must meet HoRS tequirement for environmention protection
