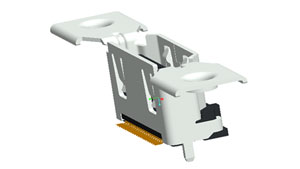

HDMI 19PIN FEMALE STRAIGHT SMT A TYPE



Pitch: HDMI 19PIN FEMALE STRAIGHT SMT A TYPE

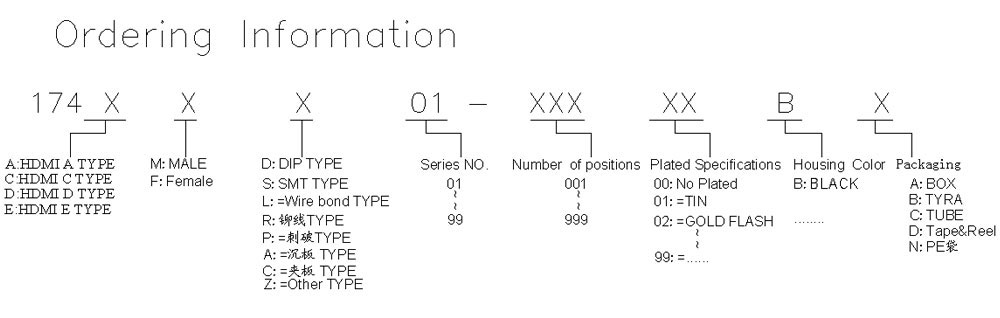

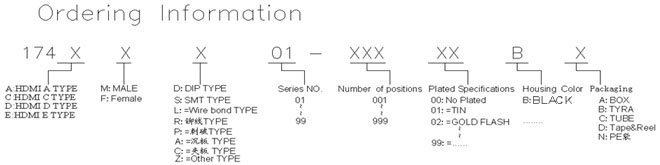

No.：174AFS02-XXXXXX







Specifications：

Current Rating：0.5Ampere
Insulation Resistance：100MΩ Min
Dielectric Withstanding：500V AC
Contact Resistance：30mΩ Max
Operating Temperature：-20℃ to +85℃



Materials:

Contact Material：Copper Alloy
Housing Material：Polyester,UL 94V-0； LCP, Color: Black
All materials must meet HoRS tequirement for environmention protection
