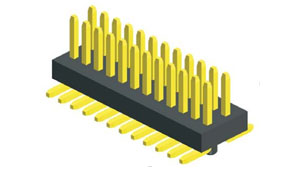

0.80mm(0.03”) Male Header Dual RowsS.M.Ttype

Pitch: 0.80mm(0.03”) Male Header Dual Rows S.M.T type

No.：163MMS01-XXXXXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：0.5Ampere
Insulation Resistance：500MΩ Min
Dielectric Withstanding：200V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃

Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0； High Temperature Nylon Black
All materials must meet HoRS tequirement for environmention protection

Ordering Information

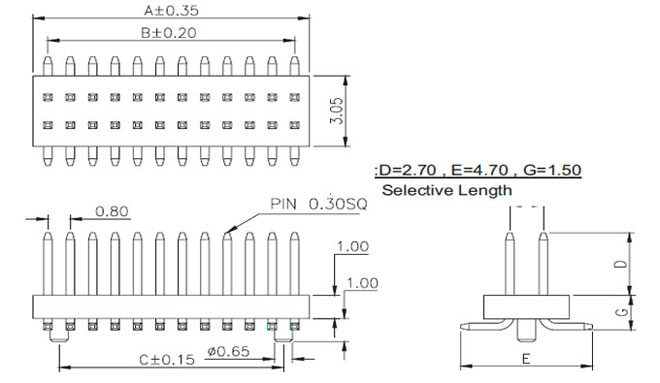

Dimension Information

No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information
No. of Pins/Row	A	B	C	No. of Pins/Row	A	B	C	No. of Pins/Row	A	B	C
3	2.66	1.60	0.80	19	15.46	14.40	13.60	35	28.26	27.20	26.40
4	3.46	2.40	1.60	20	16.26	15.20	14.40	36	29.06	28.00	27.20
5	4.26	3.20	2.40	21	17.06	16.00	15.20	37	29.86	28.80	28.00
6	5.06	4.00	3.20	22	17.86	16.80	16.00	38	30.66	29.60	28.80
7	5.86	4.80	4.00	23	18.66	17.60	16.80	39	31.46	30.40	29.60
8	6.66	5.60	4.80	24	19.46	18.40	17.60	40	32.26	31.20	30.40
9	7.46	6.40	5.60	25	20.26	19.20	18.40	41	33.06	32.00	31.20
10	8.26	7.20	6.40	26	21.06	20.00	19.20	42	33.86	32.80	32.00
11	9.06	8.00	7.20	27	21.86	20.80	20.00	43	34.66	33.60	32.80
12	9.86	8.80	8.00	28	22.66	21.60	20.80	44	35.46	34.40	33.60
13	10.66	9.60	8.80	29	23.46	22.40	21.60	45	36.26	35.20	34.40
14	11.46	10.40	9.60	30	24.26	23.20	22.40	46	37.06	36.00	35.20
15	12.26	11.20	10.40	31	25.06	24.00	23.20	47	37.86	36.80	36.00
16	13.06	12.00	11.20	32	25.86	24.80	24.00	48	38.66	37.60	36.80
17	13.86	12.80	12.00	33	26.66	25.60	24.80	49	39.46	38.40	37.60
18	14.66	13.60	12.80	34	27.46	26.40	25.60	50	40.26	39.20	38.40
