Pin Header Female Header

Pitch 0.80mm Header

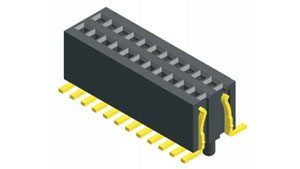

0.80mm(0.03”) Female Header Dual RowsS.M.Ttype

Pitch: 0.80mm(0.03”) Female Header Dual RowsS.M.Ttype

Specifications: Mini Din 6P Dip 90° Brass Black 1U

Application: Display Device, Projector, Computer Peripheral Products
AND MORE

Alternative Material:

NO: 172AFD01-006XXBB

Specifications
Ordering Information
Dimension Information
Related Literature

Product Specifications:
Item		Performance
Electrical	Rated Current	1.0A
	Rated Voltage	AC、DC30V
	Withstand Voltage	AC 750V For One Minute
	Insulation Resistance	1,000 MΩ Min
	Contact Resistance	30mΩ Max
Mechanical	Mating Force	30N Max
	Withdrawal Force	5N Min
	Durability	500 Cycles Min
Environmental	Temperature Range	−55℃〜＋85℃
	Soldring Temperature	Soldring Temperature Lower Than 225℃ High Temperature 225℃/5S
	Salt Spray Text	Pass 24 Hour
Material	Plastic Material	PBT+30% Ul94V-0
	Contact Material	Brass
	Shell Material	Brass
Generic Performance

Ordering Information

172BFD01	006	XX	B	B
①	②	③	④	⑤
SERIES NO	CONTACTS: 003-010 CIRCUITS	CONTACT AREA PLATING: 02=GOLD FLASH 11=15U" 14=30U"	COLOR CODE: B=BLACK	PACKING: B=TRAY

ITEM	PIN	DETAILED DESCRIPTION
172AFD01-006XXBB	006	MINI DIN 6P DIP 90° BRASS BLACK 1U PBT
172AFD01-007XXBB	007	MINI DIN 7P DIP 90° BRASS BLACK 1U PBT
172AFD01-008XXBB	008	MINI DIN 8P DIP 90° BRASS BLACK 1U PBT
172AFD01-009XXBB	009	MINI DIN 9P DIP 90° BRASS BLACK 1U PBT

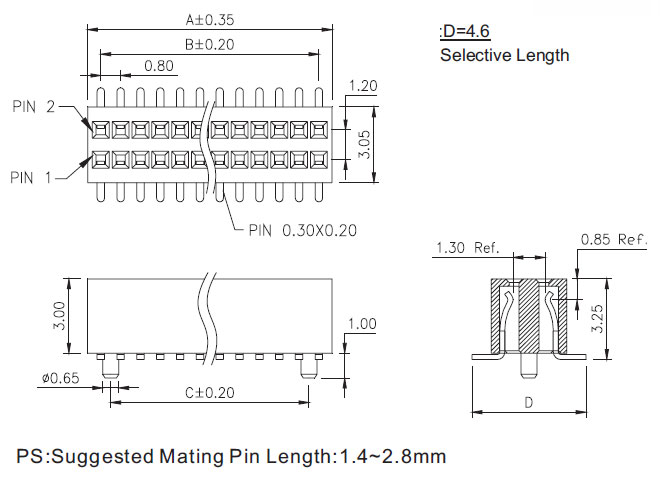

Dimension Information

No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information
No. of Pins/Row	A	B	C	No. of Pins/Row	A	B	C	No. of Pins/Row	A	B	C
03	2.66	1.60	0.80	19	15.46	14.40	13.60	35	28.26	27.20	26.40
04	3.46	2.40	1.60	20	16.26	15.20	14.40	36	29.06	28.00	27.20
05	4.26	3.20	2.40	21	17.06	16.00	15.20	37	29.86	28.80	28.00
06	5.06	4.00	3.20	22	17.86	16.80	16.00	38	30.66	29.60	28.80
07	5.86	4.80	4.00	23	18.66	17.60	16.80	39	31.46	30.40	29.60
08	6.66	5.60	4.80	24	19.46	18.40	17.60	40	32.26	31.20	30.40
09	7.46	6.40	5.60	25	20.26	19.20	18.40	41	33.06	32.00	31.20
10	8.26	7.20	6.40	26	21.06	20.00	19.20	42	33.86	32.80	32.00
11	9.06	8.00	7.20	27	21.86	20.80	20.00	43	34.66	33.60	32.80
12	9.86	8.80	8.00	28	22.66	21.60	20.80	44	35.46	34.40	33.60
13	10.66	9.60	8.80	29	23.46	22.40	21.60	45	36.26	35.20	34.40
14	11.46	10.40	9.60	30	24.26	23.20	22.40	46	37.06	36.00	35.20
15	12.26	11.20	10.40	31	25.06	24.00	23.20	47	37.86	36.80	36.00
16	13.06	12.00	11.20	32	25.86	24.80	24.00	48	38.66	37.60	36.80
17	13.86	12.80	12.00	33	26.66	25.60	24.80	49	39.46	38.40	37.60
18	14.66	13.60	12.80	34	27.46	26.40	25.60	50	40.26	39.20	38.40

Related Literature

Detailed product specifications chart (PDF) Download
Description:

Products 3D Models (PDF) Download
Description:

Product Specification (PDF) Download
Description:

Product Packaging (PDF) Download
Description:

Product Test Report (PDF) Download
Description:

The spec.and size are for reference only not for quality accepting standard; please request the detail drawing before issuing order.
