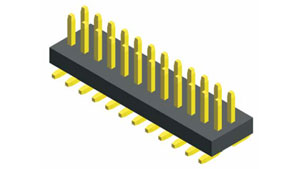

1.00mm(0.039”) Male Pin Header SMT Type


Pitch: 1.00mm(0.039”) Male  Pin Header SMT Type






Current Rating:1.0Ampere
Insulation Resistance:1000MΩ Min
Dielectric Withstanding:300V AC
Contact Resistance:20mΩ Max
Operating Temperature:-40℃ to +105℃



Contact Material:Phosphor Bronze
Housing Material:Polyester,UL 94V-0 ,High Temperature LCP Black
All materials must meet HoRS tequirement for environmention protection
