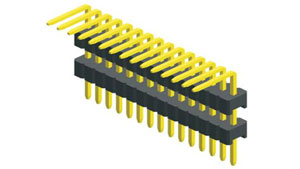

1.27mm(0.05”) Male Pin Header Dip Type(02)

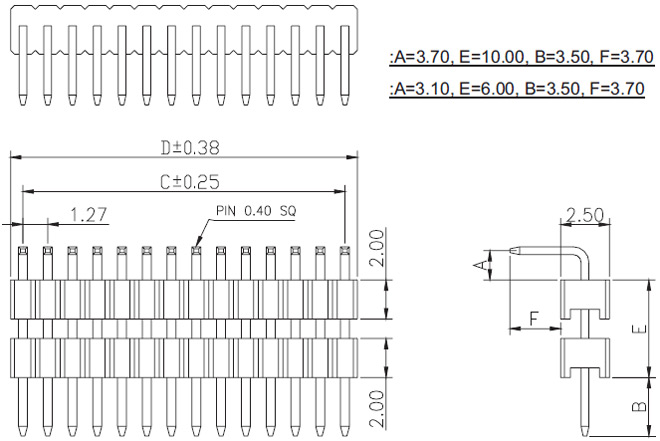

Pitch: 1.27mm(0.05”) Male  Pin Header Dip Type(02)

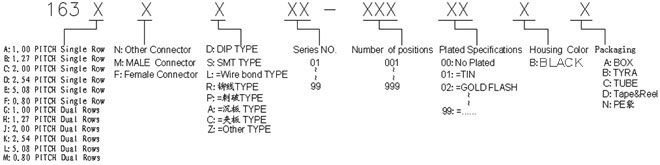

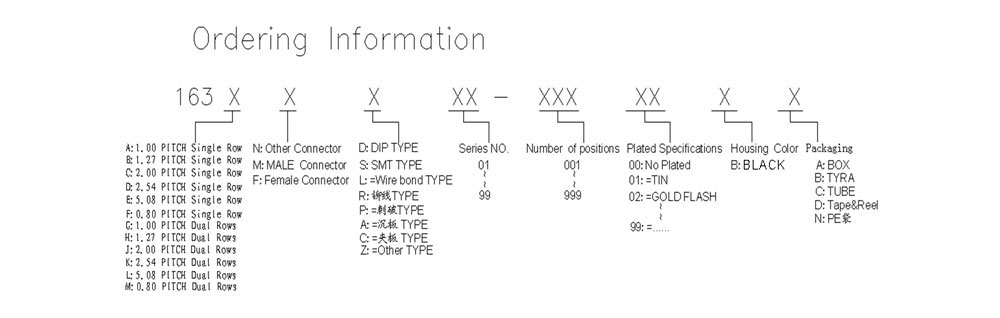

No.：163BMD05/06-XXXXXX







Specifications：

Current Rating：1.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：300V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃



Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature LCP Black
All materials must meet HoRS tequirement for environmention protection
