1.27mm(0.05”) Male Pin Header Dip Type(08)

Pitch: 1.27mm(0.05”) Male Pin Header Dip Type(08)

No.：GXXX-XXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：1.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：300V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃

Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature LCP or Nylon Black; All materials must meet HoRS tequirement for environmention protection

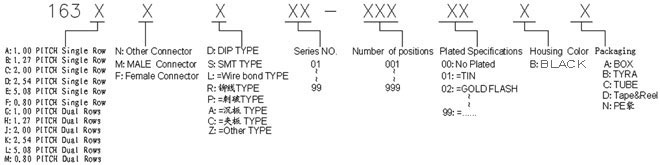

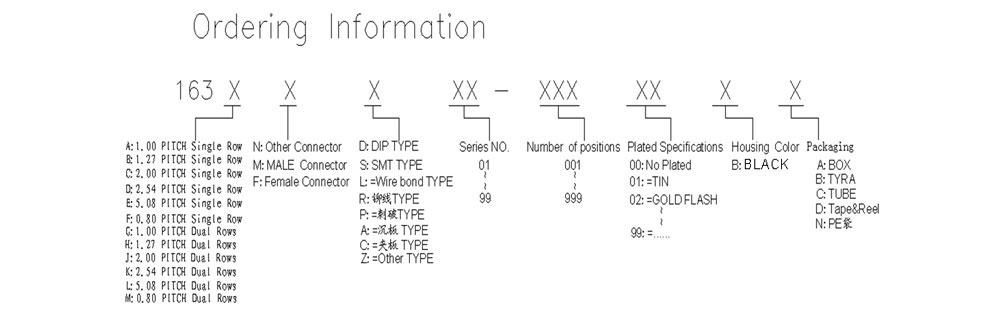

Ordering Information

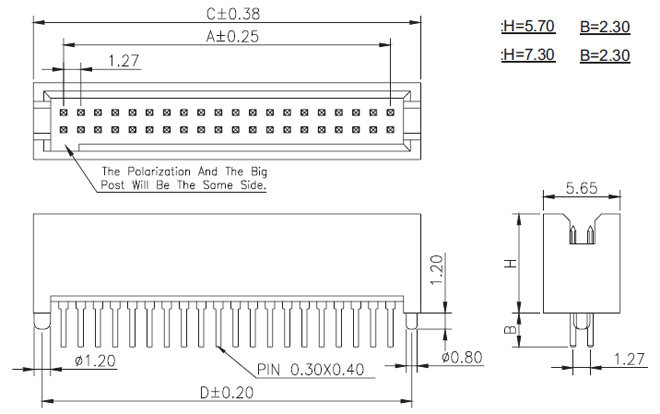

Dimension Information

No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information
No. of Pins/Row	A	C	D	No. of Pins/Row	A	C	D	No. of Pins/Row	A	C	D
03	2.51	7.01	5.69	19	22.86	27.33	26.01	35	43.18	47.65	46.33
04	3.78	8.28	6.96	20	24.13	28.60	27.28	36	44.45	48.92	47.60
05	5.08	9.55	8.23	21	25.40	29.87	28.55	37	45.72	50.19	48.87
06	6.35	10.82	9.50	22	26.67	31.14	29.82	38	46.99	51.46	50.14
07	7.62	12.09	10.77	23	27.94	32.41	31.09	39	48.26	52.73	51.41
08	8.89	13.36	12.04	24	29.21	33.68	32.36	40	49.53	54.00	52.68
09	10.16	14.63	13.31	25	30.48	34.95	33.63	41	50.80	55.27	53.95
10	11.43	15.90	14.58	26	31.75	36.22	34.90	42	52.07	56.65	55.22
11	12.70	17.17	15.85	27	33.02	37.49	36.17	43	53.34	57.81	56.49
12	13.97	18.44	17.12	28	34.29	38.76	37.44	44	54.61	59.08	57.76
13	15.24	19.71	18.39	29	35.56	40.03	38.71	45	55.88	60.35	59.03
14	16.51	20.98	19.66	30	36.83	41.30	39.98	46	57.15	61.62	60.30
15	17.78	22.25	20.93	31	38.10	42.57	41.25	47	58.42	62.89	61.57
16	19.05	23.52	22.20	32	39.37	43.84	42.52	48	59.69	64.16	62.84
17	20.32	24.79	23.47	33	40.64	45.11	43.79	49	60.96	65.43	64.11
18	21.59	26.06	24.74	34	41.91	46.38	45.06	50	62.23	66.70	65.38

Related Literature

Detailed product specifications chart (PDF) Download
Description:

Products 3D Models (PDF) Download
Description:

Product Specification (PDF) Download
Description:

Product Packaging (PDF) Download
Description:

Product Test Report (PDF) Download
Description:
