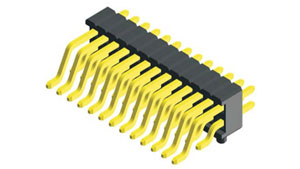

1.27mm(0.05”) Male Pin Header SMT Type(05)

Pitch: 1.27mm(0.05”) Male Pin Header SMT Type(05)

No.：163HMS05-XXXXXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：1.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：300V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃

Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature LCP or Nylon Black; All materials must meet HoRS tequirement for environmention protection

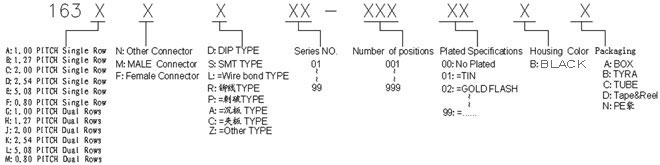

Ordering Information

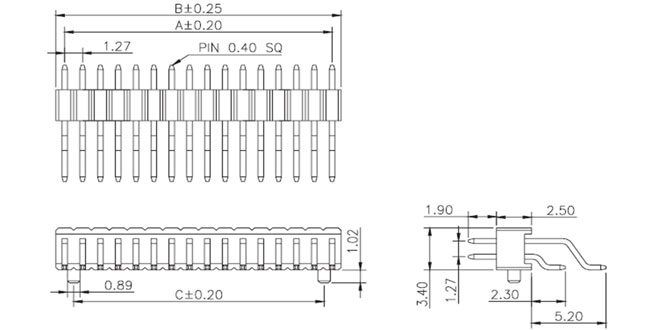

Dimension Information

No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information
No. of Pins/Row	A	B	C	No. of Pins/Row	A	B	C	No. of Pins/Row	A	B	C
-	-	-	-	13	15.24	16.51	13.97	24	29.21	30.48	27.94
03	2.54	3.81	1.27	14	16.51	17.78	15.24	25	30.48	31.75	29.21
04	3.81	5.08	2.54	15	17.78	19.05	16.51	26	31.75	33.02	30.48
05	5.08	6.35	3.81	16	19.05	20.32	17.78	27	33.02	34.29	31.75
06	6.35	7.62	5.08	17	20.32	21.59	19.05	28	34.29	35.56	33.02
07	7.62	8.89	6.35	18	21.59	22.86	20.32	29	35.56	36.83	34.29
08	8.89	10.16	7.62	19	22.86	24.13	21.59	30	36.83	38.10	35.56
09	10.16	11.43	8.89	20	24.13	25.40	22.86	31	38.10	39.37	36.83
10	11.43	12.70	10.16	21	25.40	26.67	24.13	32	39.37	40.64	38.10
11	12.70	13.97	11.43	22	26.67	27.94	25.40	33	40.64	41.91	39.37
12	13.97	15.24	12.70	23	27.94	29.21	26.67

Related Literature

Detailed product specifications chart (PDF) Download
Description:

Products 3D Models (PDF) Download
Description:

Product Specification (PDF) Download
Description:

Product Packaging (PDF) Download
Description:

Product Test Report (PDF) Download
Description:
