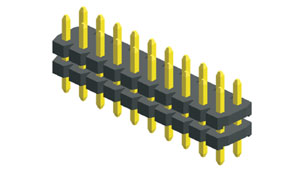

2.00mm(0.079”) Male Pin Header Dip Type(06)

Pitch:

No.：163JMD03/04-XXXXXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：2.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：500V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃

Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature LCP or Nylon Black; All materials must meet HoRS tequirement for environmention protection

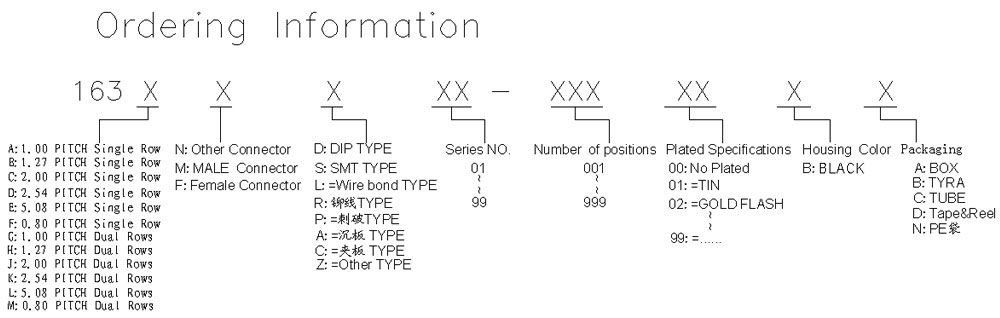

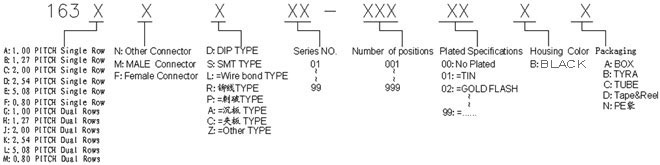

Ordering Information

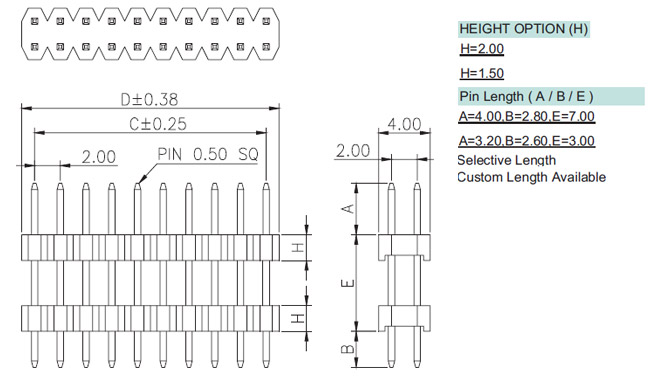

Dimension Information

No. of Pins/Row	Dimension Information		No. of Pins/Row	Dimension Information		No. of Pins/Row	Dimension Information
No. of Pins/Row	C	D	No. of Pins/Row	C	D	No. of Pins/Row	C	D
02	2.00	4.00	15	28.00	30.00	28	54.00	56.00
03	4.00	6.00	16	30.00	32.00	29	56.00	58.00
04	6.00	8.00	17	32.00	34.00	30	58.00	60.00
05	8.00	10.00	18	34.00	36.00	31	60.00	62.00
06	10.00	12.00	19	36.00	38.00	32	62.00	64.00
07	12.00	14.00	20	38.00	40.00	33	64.00	66.00
08	14.00	16.00	21	40.00	42.00	34	66.00	68.00
09	16.00	18.00	22	42.00	44.00	35	68.00	70.00
10	18.00	20.00	23	44.00	46.00	36	70.00	72.00
11	20.00	22.00	24	46.00	48.00	37	72.00	74.00
12	22.00	24.00	25	48.00	50.00	38	74.00	76.00
13	24.00	26.00	26	50.00	52.00	39	76.00	78.00
14	26.00	28.00	27	52.00	54.00	40	78.00	80.00

Related Literature

Detailed product specifications chart (PDF) Download
Description:

Products 3D Models (PDF) Download
Description:

Product Specification (PDF) Download
Description:

Product Packaging (PDF) Download
Description:

Product Test Report (PDF) Download
Description:
