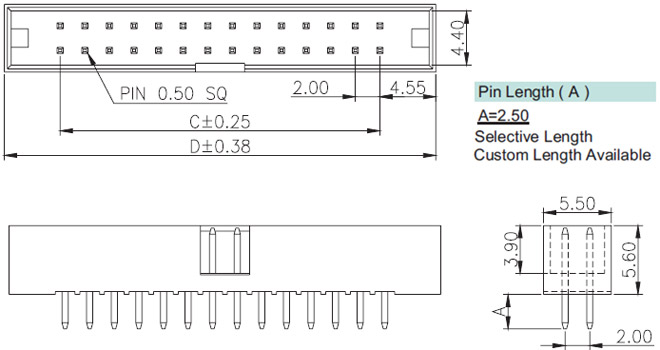

2.00mm(0.079”) Male Pin Header Dip Type(11)



Pitch:

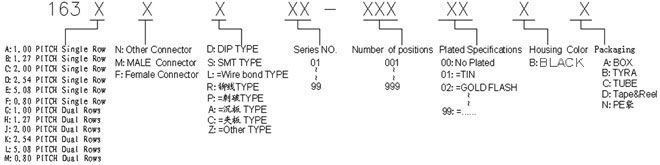

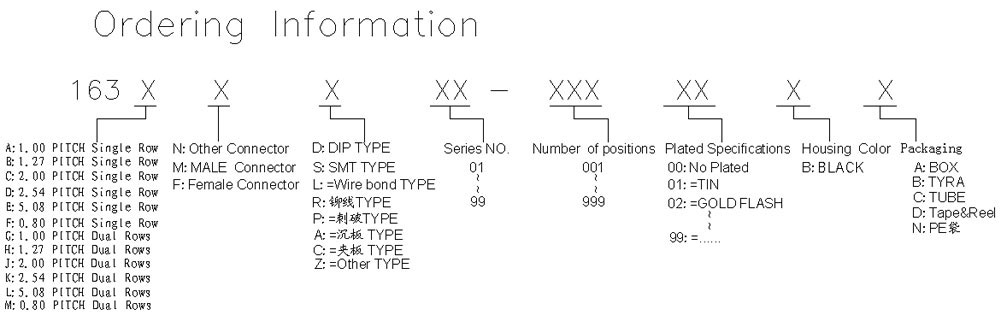

No.：163JMD07-XXXXXX







Specifications：

Current Rating：2.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：500V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃



Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature LCP or Nylon Black; All materials must meet HoRS tequirement for environmention protection
