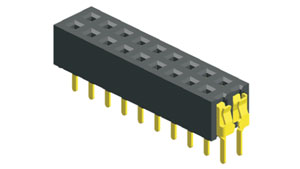

2.00mm(0.079”) Female Pin Header Dip Type(08)

Pitch:

No.：163JFD03-XXXXXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：2.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：500V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃

Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature LCP or Nylon Black; All materials must meet HoRS tequirement for environmention protection

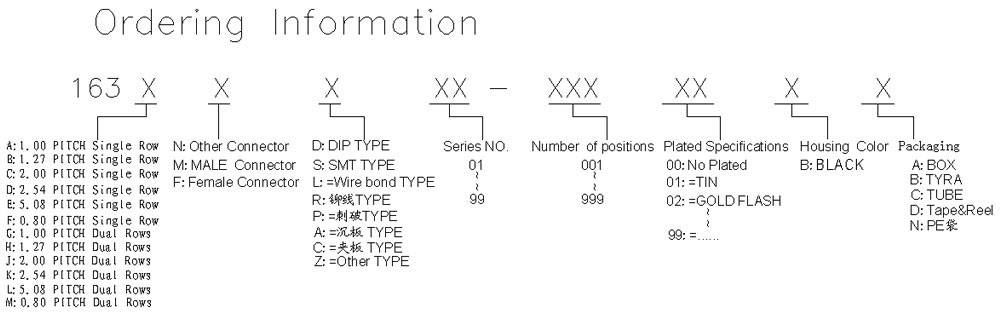

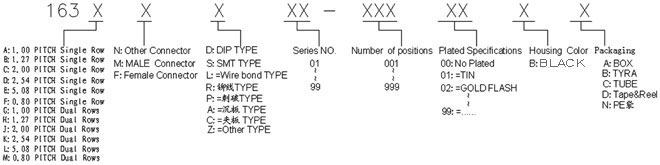

Ordering Information

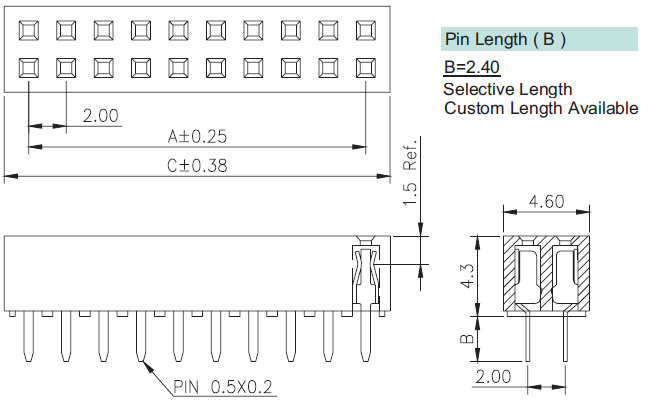

Dimension Information

No. of Pins/Row	Dimension Information		No. of Pins/Row	Dimension Information		No. of Pins/Row	Dimension Information
No. of Pins/Row	A	C	No. of Pins/Row	A	C	No. of Pins/Row	A	C
02	2.00	4.60	15	28.00	30.60	28	54.00	56.60
03	4.00	6.60	16	30.00	32.60	29	56.00	58.60
04	6.00	8.60	17	32.00	34.60	30	58.00	60.60
05	8.00	10.60	18	34.00	36.60	31	60.00	62.60
06	10.00	12.60	19	36.00	38.60	32	62.00	64.60
07	12.00	14.60	20	38.00	40.60	33	64.00	66.60
08	14.00	16.60	21	40.00	42.60	34	66.00	68.60
09	16.00	18.60	22	42.00	44.60	35	68.00	70.60
10	18.00	20.60	23	44.00	46.60	36	70.00	72.60
11	20.00	22.60	24	46.00	48.60	37	72.00	74.60
12	22.00	24.60	25	48.00	50.60	38	74.00	76.60
13	24.00	26.60	26	50.00	52.60	39	76.00	78.60
14	26.00	28.60	27	52.00	54.60	40	78.00	80.60
