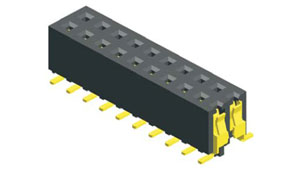

2.00mm(0.079”) Female Pin Header SMT Type(04)

Pitch:

No.：163JFS06/07-XXXXXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：2.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：500V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃

Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature LCP or Nylon Black; All materials must meet HoRS tequirement for environmention protection

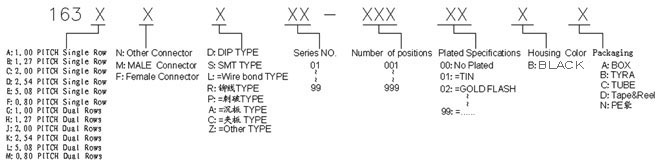

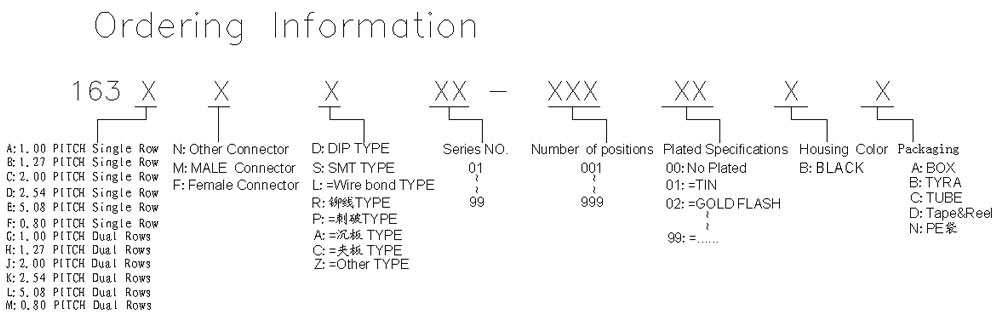

Ordering Information

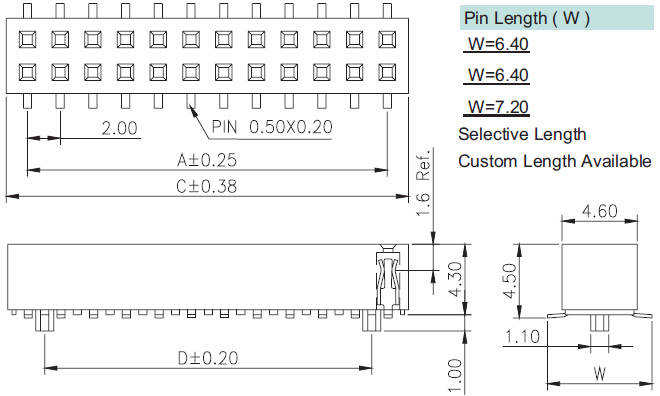

Dimension Information

No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information			No. of Pins/Row	Dimension Information
No. of Pins/Row	A	C	D	No. of Pins/Row	A	C	D	No. of Pins/Row	A	C	D
03	4.00	6.60	2.00	16	15.00	32.60	28.00	29	56.00	58.60	54.00
04	6.00	8.60	4.00	17	16.00	34.60	30.00	30	58.00	60.60	56.00
05	8.00	10.60	6.00	18	17.00	36.60	32.00	31	60.00	62.60	58.00
06	10.00	12.60	8.00	19	18.00	38.60	34.00	32	62.00	64.60	60.00
07	12.00	14.60	10.00	20	19.00	40.60	36.00	33	64.00	66.60	62.00
08	14.00	16.60	12.00	21	20.00	42.60	38.00	34	66.00	68.60	64.00
09	16.00	18.60	14.00	22	21.00	44.60	40.00	35	68.00	70.60	66.00
10	18.00	20.60	16.00	23	44.00	46.60	42.00	36	70.00	72.60	68.00
11	20.00	22.60	18.00	24	46.00	48.60	44.00	37	72.00	74.60	70.00
12	22.00	24.60	20.00	25	48.00	50.60	46.00	38	74.00	76.60	72.00
13	24.00	26.60	22.00	26	50.00	52.60	48.00	39	76.00	78.60	74.00
14	26.00	28.60	24.00	27	52.00	54.60	50.00	40	78.00	80.60	76.00
15	14.00	30.60	26.00	28	54.00	56.60	52.00

Related Literature

Detailed product specifications chart (PDF) Download
Description:

Products 3D Models (PDF) Download
Description:

Product Specification (PDF) Download
Description:

Product Packaging (PDF) Download
Description:

Product Test Report (PDF) Download
Description:
