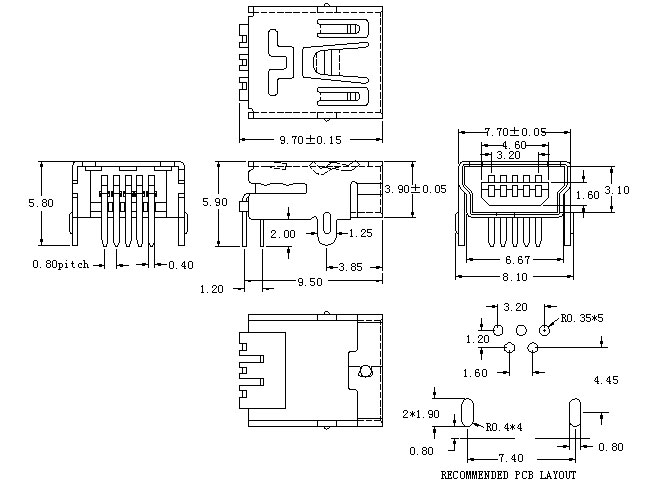

MINI USB B/F 5P DIP 90°



Pitch:MINI USB B/F 5P DIP 90°

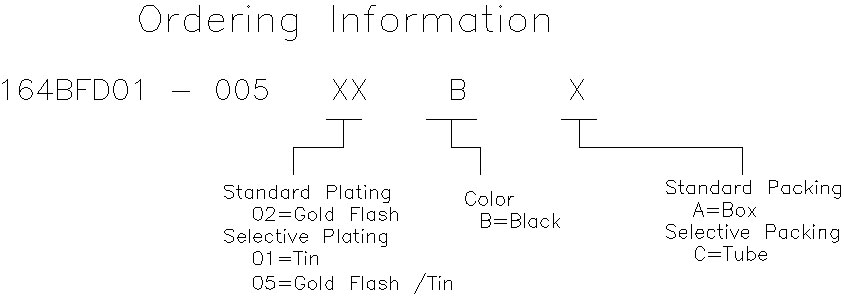

Part NO.：164BFD01-005XXBX







Specifications：

Current Rating：1.00Ampere
Insulation Resistance：1000MΩ Min Final
Dielectric Withstanding：300V AC
Contact Resistance：50mΩ Max
Operating Temperature：-40℃ to +105℃



Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0；High Temperature LCP Black
All materials must meet HoRS tequirement for environmention protection
