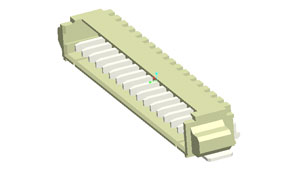

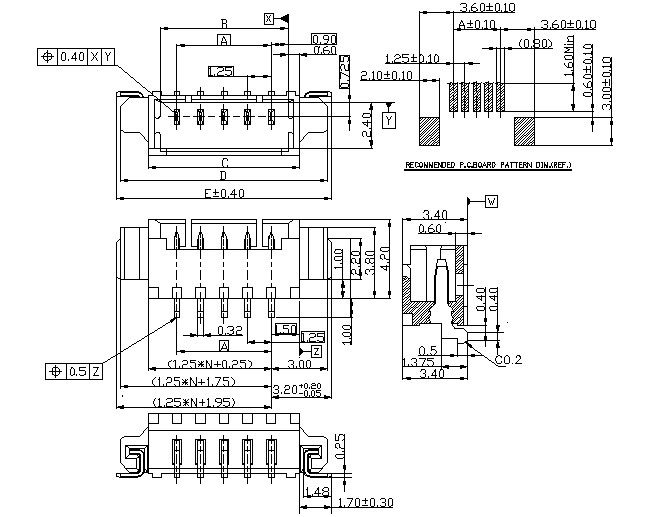

Pitch:1.25mm(0.049”) Male WAFER 180° SMT TYPE

Pitch: 1.25mm(0.049”) Male WAFER 180° SMT TYPE

Part NO.: 166AMS02-XXXXXX

Current Rating：1.0Ampere
Insulation Resistance：100MΩ Min
Dielectric Withstanding：250V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃





Specifications：

Current Rating：1.0Ampere
Insulation Resistance：100MΩ Min
Dielectric Withstanding：250V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃



Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature or Nylom White;
All materials must meet HoRS tequirement for environmention protection
