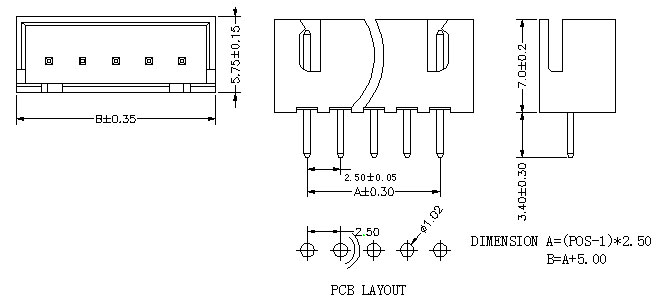

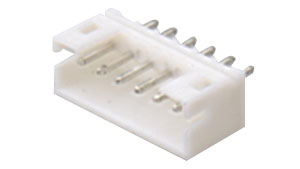

2.54mm(0.100”) Wafer 180° DIP type

Pitch: 2.54mm(0.100”) Wafer 180° DIP type

Part NO.: 166AMS02-XXXXXX

Current Rating：1.5Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：1000V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃





Specifications：

Current Rating：1.5Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：1000V AC
Contact Resistance：20mΩ Max
Operating Temperature：-40℃ to +105℃



Materials:

Contact Material：Phosphor Bronze
Housing Material：Polyester,UL 94V-0 ,High Temperature or Nylom White;
All materials must meet HoRS tequirement for environmention protection
