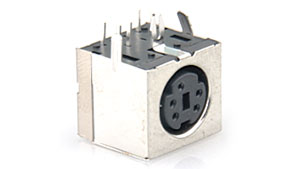

Mini Din 5P FEMALE R/A Dip FULL SHIELD



Pitch:  Mini Din 5P FEMALE R/A Dip FULL SHIELD

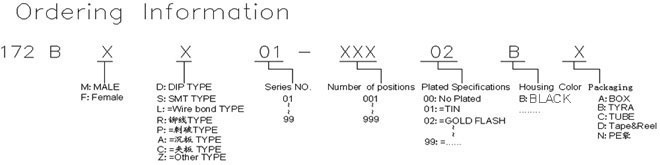

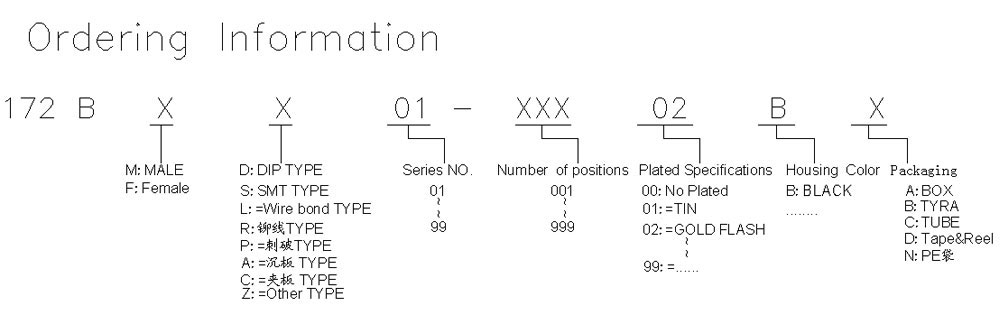

No.：172BFD01-05XXXX







Specifications：

Current Rating：1.0Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：750V AC
Contact Resistance：30mΩ Max
Operating Temperature：-55℃ to +85℃



Materials:

Contact Material：Copper Alloy
Housing Material：Polyester,UL 94V-0； PBT+30%GF, Color: Black
All materials must meet HoRS tequirement for environmention protection
