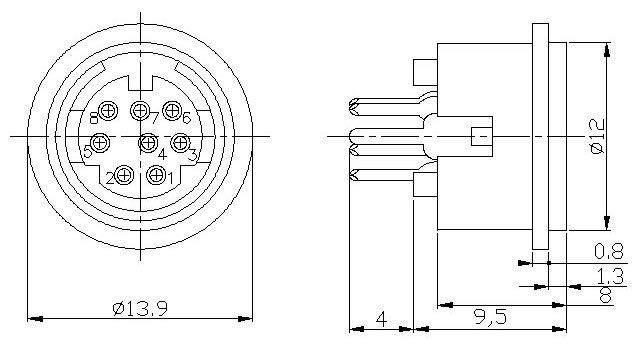

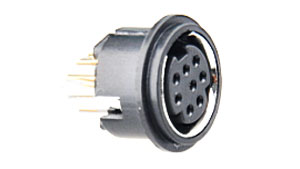

MINI DIN 8P Female TOP ENTRY BLACK FULL PLASTIC



Pitch: MINI DIN 8P Female TOP ENTRY BLACK FULL PLASTIC

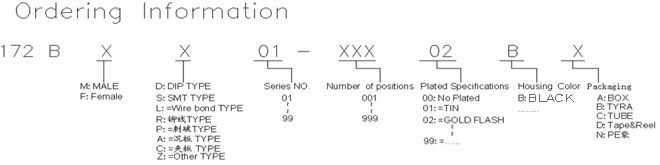

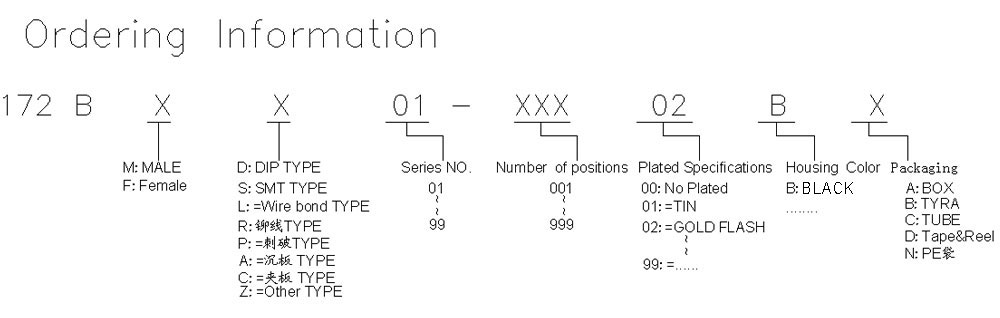

No.：172BFD03-08AGXX







Specifications：

Current Rating：0.3Ampere
Insulation Resistance：1000MΩ Min
Dielectric Withstanding：750V AC
Contact Resistance：30mΩ Max
Operating Temperature：-25℃ to +85℃



Materials:

Contact Material：Copper Alloy
Housing Material：Polyester,UL 94V-0； PBT+30%GF, Color: Black
All materials must meet HoRS tequirement for environmention protection
